Application

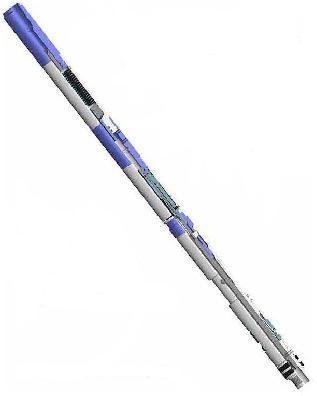

Taylor Made TMX Hydraulic Running Tool is designed to deploy X & R type lock mandrels on coiled tubing.  Fully hydraulic, the TMX is capable of landing nipple selection, landing nipple location, lock mandrel closure, and separation (pin shear) between the lock mandrel and running tool.

Lock mandrels can be attached to the TMX in either the selective or locate position.  A low rate of circulation can be maintained while running in the well.  An increased circulation rate exceeding the pre-determined setting will activate the tool through the setting cycles.

Design Features
